LACING & FASTENERS
As a proud, authorized distributor for Flexco brand lacing & fasteners, Shenandoah industrial Rubber offers our customers access to the finest in-field splicing and complete conveyor belt assemblies. We offer standard mechanical lacing, which includes a variety of standard mechanical fasteners with hinge pins -offering for easy, quick, and secure method of joining belt ends. Popular styles include Alligator, Clipper, Flexco, Minet and others. Flexco bolt hinged and rivet hinged systems offer splicing solutions for heavier belting products conveying more aggravating media. Lacing and fastener selection are critical to the proper function of a conveyor belt. Be sure to let the experts at Shenandoah Industrial Rubber share their knowledge in your purchase!
SUPER-SCREW®
The Super-Screw® Flexible Rubber Fastening System is a unique and innovative solution that acts as an alternative to vulcanization in even the toughest, most demanding applications. The flexible splice screws directly into the belt with great accuracy and precision, offering a solution that is truly like no other.
This revolutionary fastening system consists of a top and bottom piece of rubber, reinforced with one or more fabric plies for strength, along with pre-drilled holes that are fastened together with screws and a cordless drill and bit. This creates a strong, yet flexible splice that provides all the benefits of vulcanization without the challenges. With Super-Screw, you can install these flexible splices regardless of the location or accessibility of the conveyor belt and regardless of weather conditions. The Super-Screw Flexible Rubber Fastening System can be used on belts with skived belt thicknesses from 5/32” to 3/4”(4 mm to 19 mm), and pulley diameters as small as 6”. Sizes are available to accommodate PIW ratings up to 1200.
Belt Thickness: Up through 1/2"
PIW Max: 150 PIW - 620 PIW
Min. Pulley Diameter: 12" - 48"
WIRE HOOK LACING
For easy, economical installation and an exceptionally smooth joint, choose Alligator® Belt Lacing Fastener System. Steel or stainless lacing is available in continuous lengths to fit any belt width. The hammer-applied splice requires no special installation tools and is ideal for low-volume users with belts up to 1/2" (13mm) thick.
Alligator Belt Lacing can operate over pulleys as small as 1" (25mm) in diameter, or on belts with mechanical fastener ratings to 200 PIW (35 kN/m).
One-piece design provides uniform tension across the full belt width. Also helps ensure that no loose pieces work themselves out of the belt and into conveyed product.
Belt Thickness: Up through 1/2"
PIW Max: 150 PIW - 620 PIW
Min. Pulley Diameter: 12" - 48"
STAPLE LACING
With pre-inserted staples and a one-piece strip design, Alligator Ready Set makes splicing quick and easy.
Features and Benefits:
• Strong and impact-resistant splice
• Abrasion resistant splice
• The front edge of the fastener is beveled to allow it to interface smoothly with conveyor components
Options:
• Available in steel, stainless steel, MegAlloy and magnetic stainless
Applications:
• Package and baggage handling, cased goods, parts, food and agricultural products
• Belts from 1/16” – 1/4” (1.5 – 6.4 mm) thick, with mechanical fastener ratings up to 200 P.I.W. (35 kN/m) and minimum pulley diameters from 2” – 4” (50 - 102 mm)
Belt Thickness: 1/16" - 1/4"
PIW Max: 100 PIW - 200 PIW
Min. Pulley Diameter: 2" - 4"

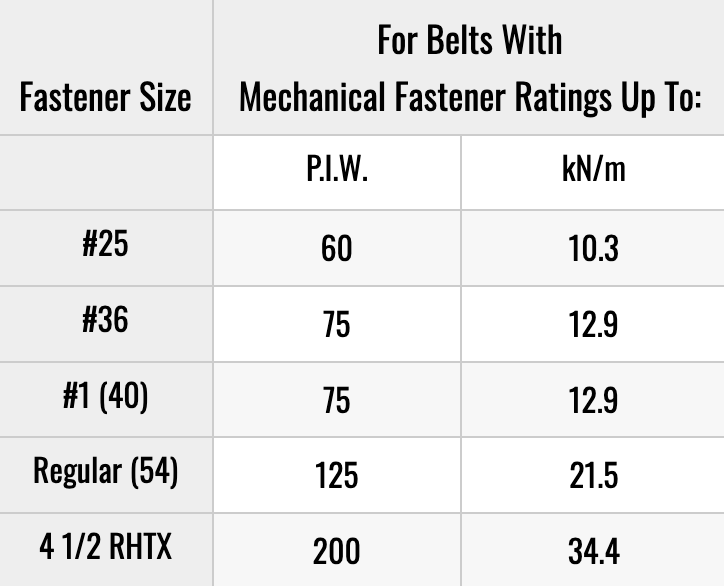

BOLT HINGED LACING
For belts operating over smaller pulleys – such as in construction equipment and road machinery – Flexco® Bolt Hinged fasteners are strong, dependable and easy-to-install. Hinged construction makes Bolt Hinged fasteners ideal for applications requiring frequent belt-length alterations, the joint can be separated simply by removing the hinge pin. A variety of hinge pins are available to match your application.
Belt Thickness: 1/4" - 5/8"
PIW Max: 25 PIW - 200 PIW
Min. Pulley Diameter: 1" - 14"
RIVET HINGED SYSTEM
Ideal for rubber plied and PVC solid woven belting, and for worn belts unfit for vulcanized splices, the Flexco® SR™ Rivet Hinged System delivers the performance, long life, and easy installation that maximize belt availability.
Features and Benefits:
• Low-profile, Scalloped Edge™ design that reduces exposure to cleaner blades, skirt rubber,
and return idlers
• Self-setting rivets in staggered pattern for maximum holding ability without damage to belt carcass fibers
• Built-in viewport for easy fastener positioning
• Easy joint separation by simply removing the hinge pin
Options:
• Available in a variety of sizes and materials to meet your needs
• Power installation to reduce worker fatique and ensure uniform splices
Applications:
• Underground and surface mining, coal and hard rock, asphalt plants, pulp and paper, sand and gravel plants, and other demanding applications
• For belts from 1/8” – 1” (3 – 25 mm) thick with mechanical fastener ratings from 330 to 2,000 P.I.W. (60 – 350 kN/m) and minimum pulley diameters from 5” – 42” (125 – 1050 mm)
Belt Thickness: 1/8" - 1"
PIW Max: 330 PIW - 2000 PIW
Min. Pulley Diameter: 5" - 42"
SOLID PLATE FASTENERS
The Flexco® Bolt Solid Plate Fastening System produces a strong, sift-free splice with superior holding ability thanks to a combination of top-and-bottom plate compression and high-tensile-strength bolts.
Belt Thickness: 3/16" - 1-3/16"
PIW Max: 150 PIW - 620 PIW
Min. Pulley Diameter: 12" - 48"
